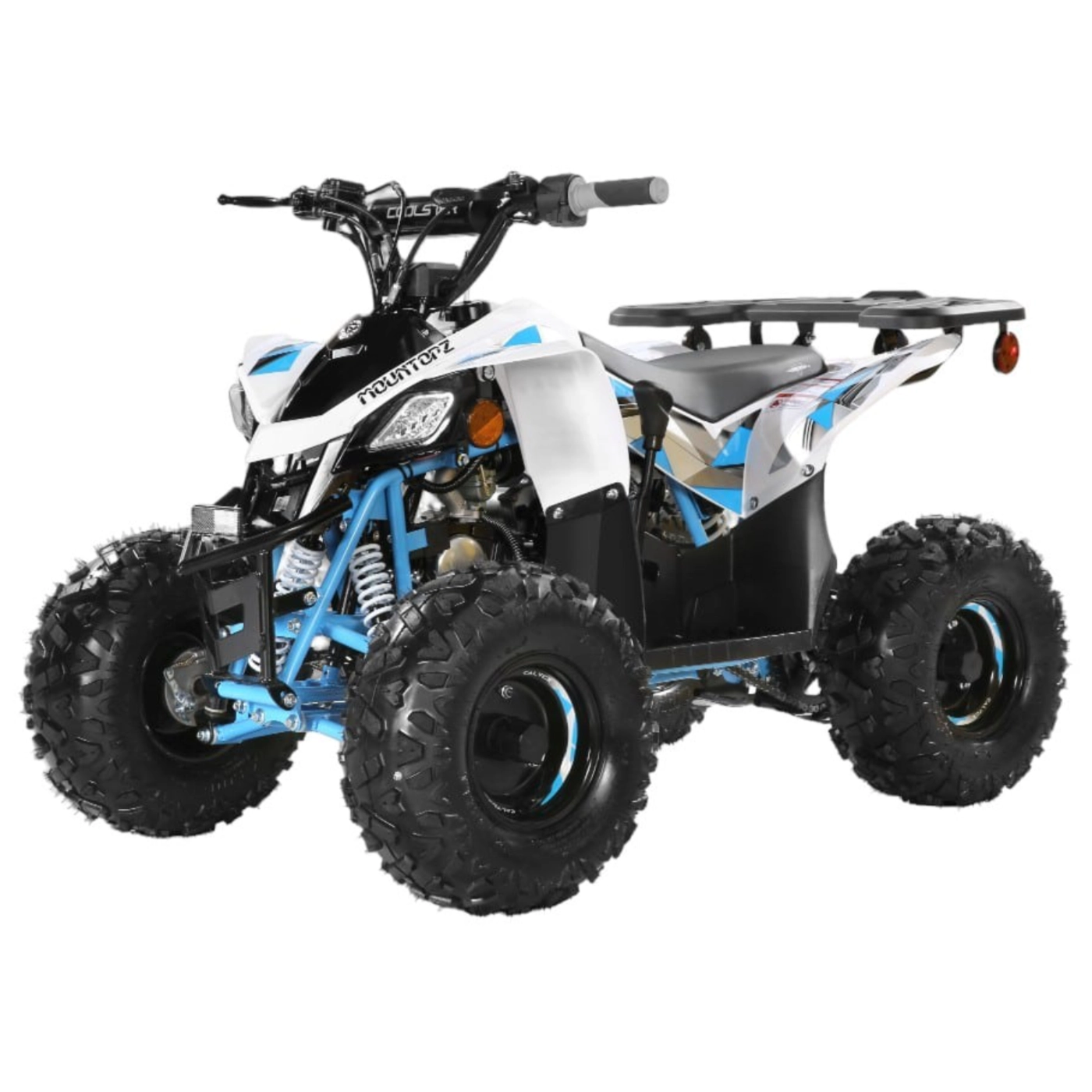

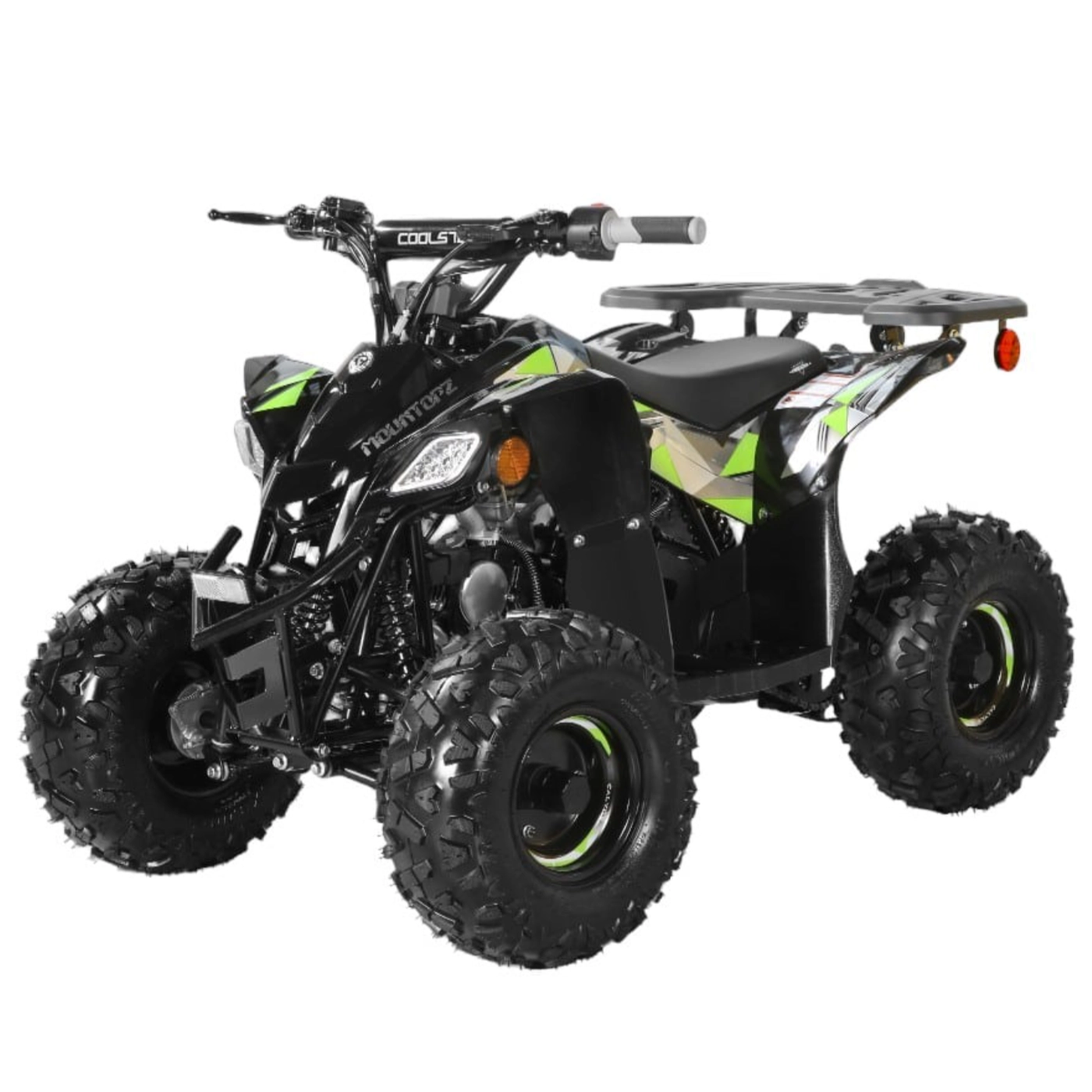

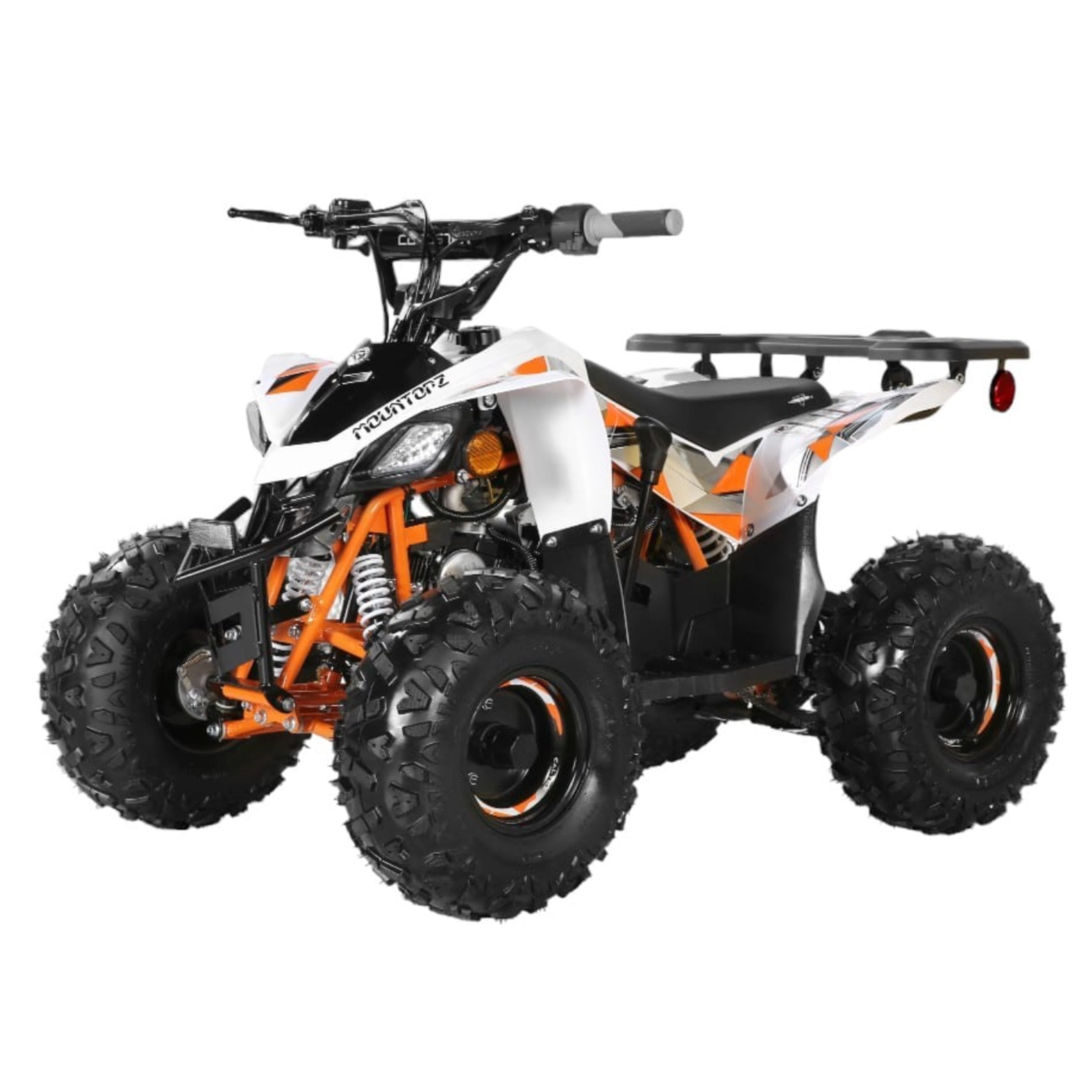

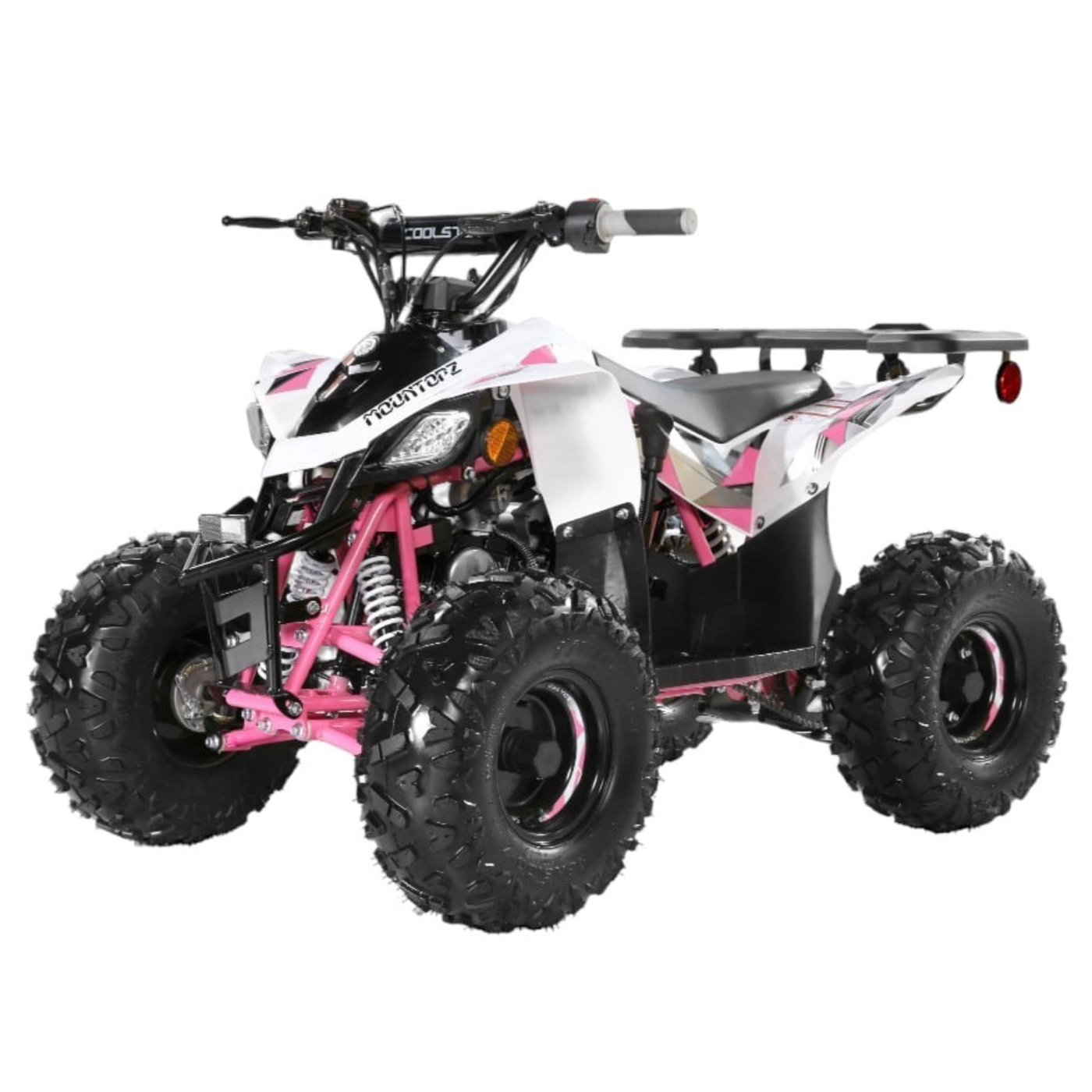

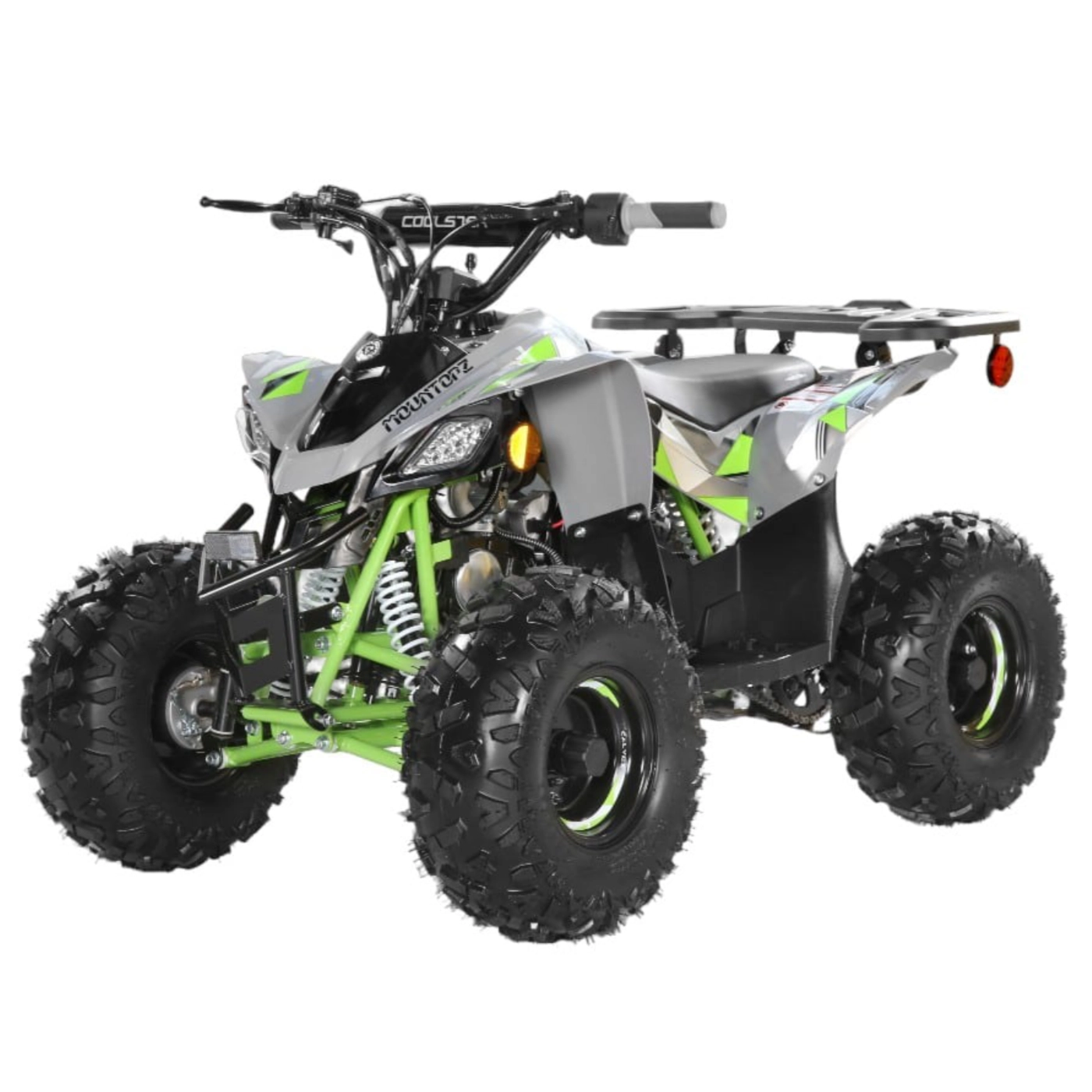

The 3125R2 is a versatile and durable automatic quad ATV. Powered by a reliable 125cc 4-stroke engine, this quad offers superior performance. Equipped with top-notch spring suspensions and durable shocks, it ensures a smooth and comfortable ride. Not only does the 3125R2 deliver exceptional performance, but it also boasts aggressive sporty aesthetics that are sure to turn heads. Experience the thrill of off-road adventures with this high-quality 4X4 ATV. This model offers an adjustable speed limiter and remote control with kill switch for additional control and safety.
Specifications:
Model Number: ATV-3125R2
Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
Displacement: 120cc
Max Torque: 6.9N.m/6,500 ± 500r/min (N.m/r/min)
Max Power: 5.5kW/8,500 ± 500r/min (kW/r/min)
Bore Stroke: 52.4 x 55.5mm
Ignition: CDI
Starting System: Electric
Battery: 12V, 4Ah
Clutch: Fully Automatic
Transmission: Chain, Rear Wheel Drive
Brakes Front/Rear: Drum/Hydraulic Disc
Tires Front/Rear: 16 x 8-7 /16 x 8-7
Fuel Type: 92 or Higher Octane, Unleaded Gasoline
Fuel Capacity: 0.54 gallons / 2.06L
Maximum Weight Capacity: 165 lbs / 75 kg
Wheelbase (Front/Rear): 34" (850mm)
Dimensions: 53" x 31" x 36" (1345 x 785 x 890mm)
Height to Seat: 27" (685mm)
Min. Ground Clearance: 3.3" (85mm)
Weight(G.W./N.W): 261 lbs / 216 lbs (118 kg / 98 kg)
Passenger Capacity: Operator Only
Minimum Age Recommendation: 10 yrs old
This 120cc ATV's features, performance, and reliability compare well with many brand-name competitors.
All Coolster ATVs are made under a very strict, ISO 9000-compliant, quality control system.
