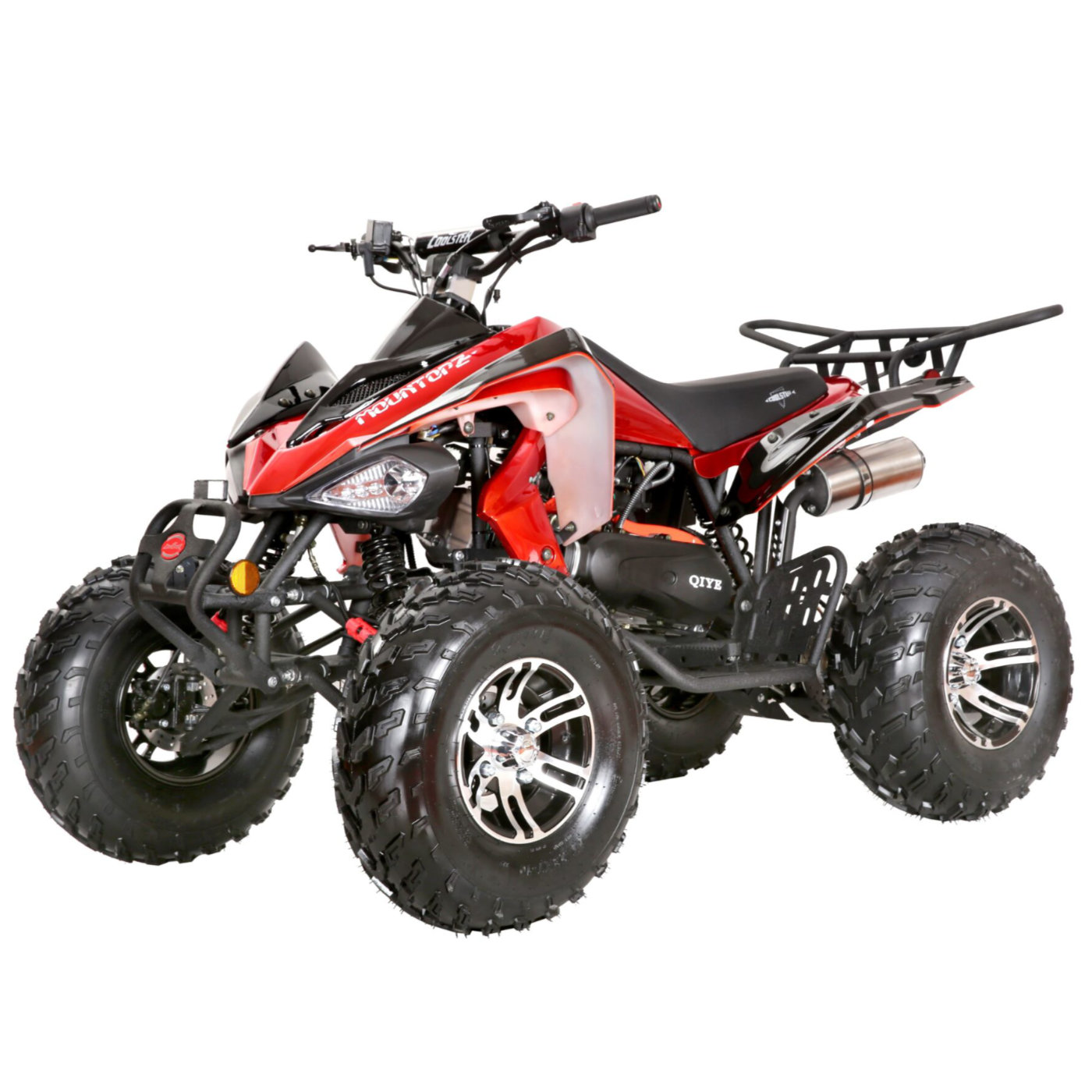

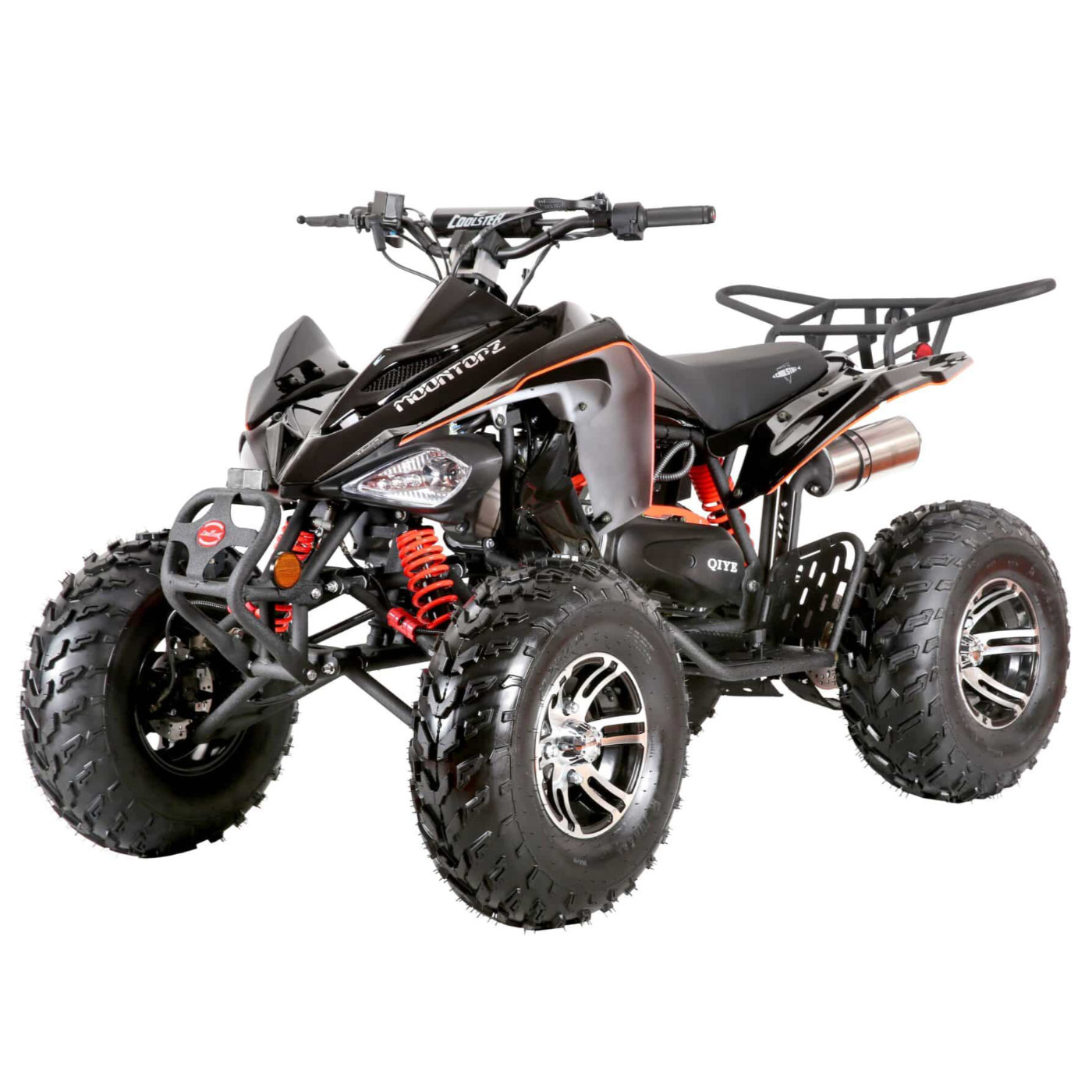

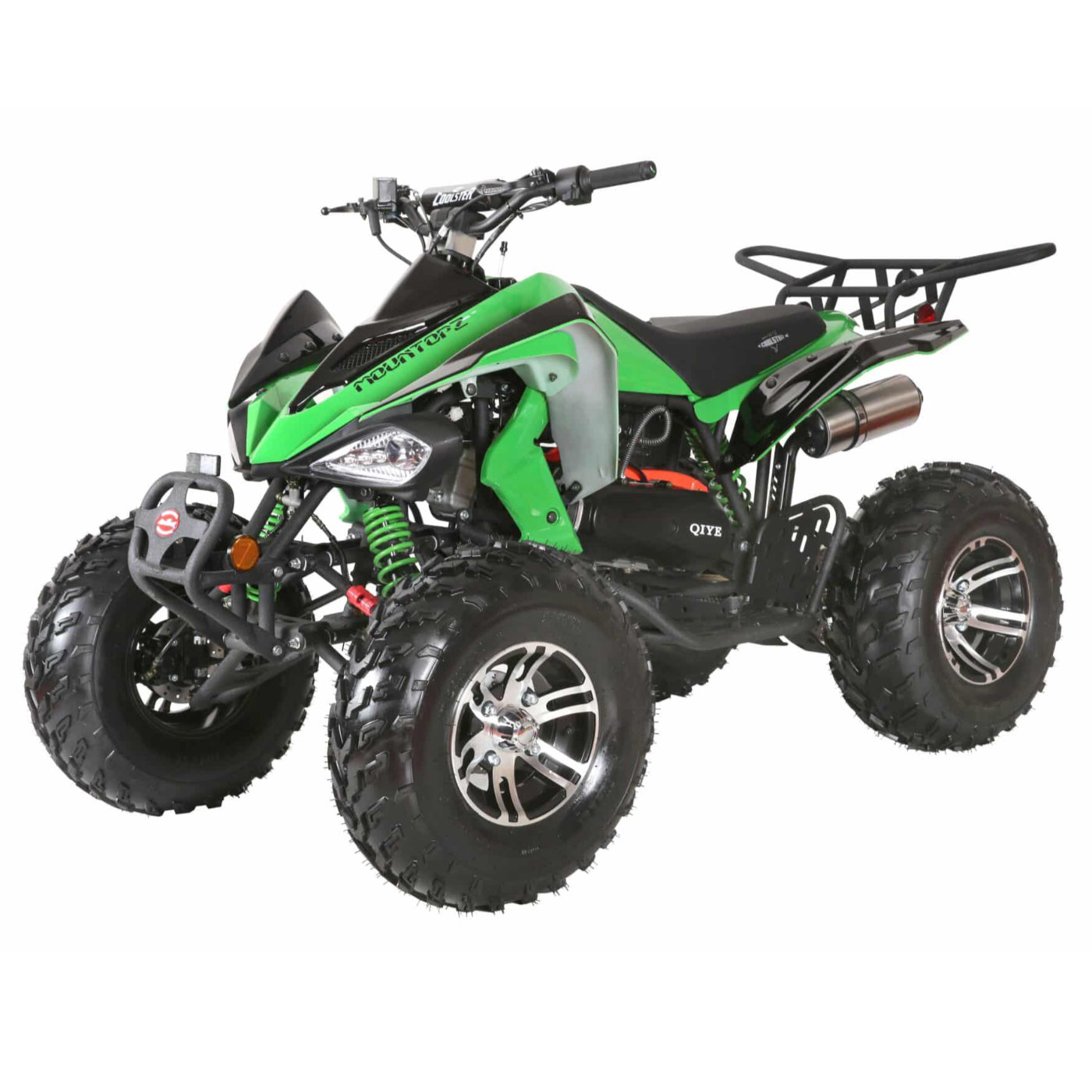

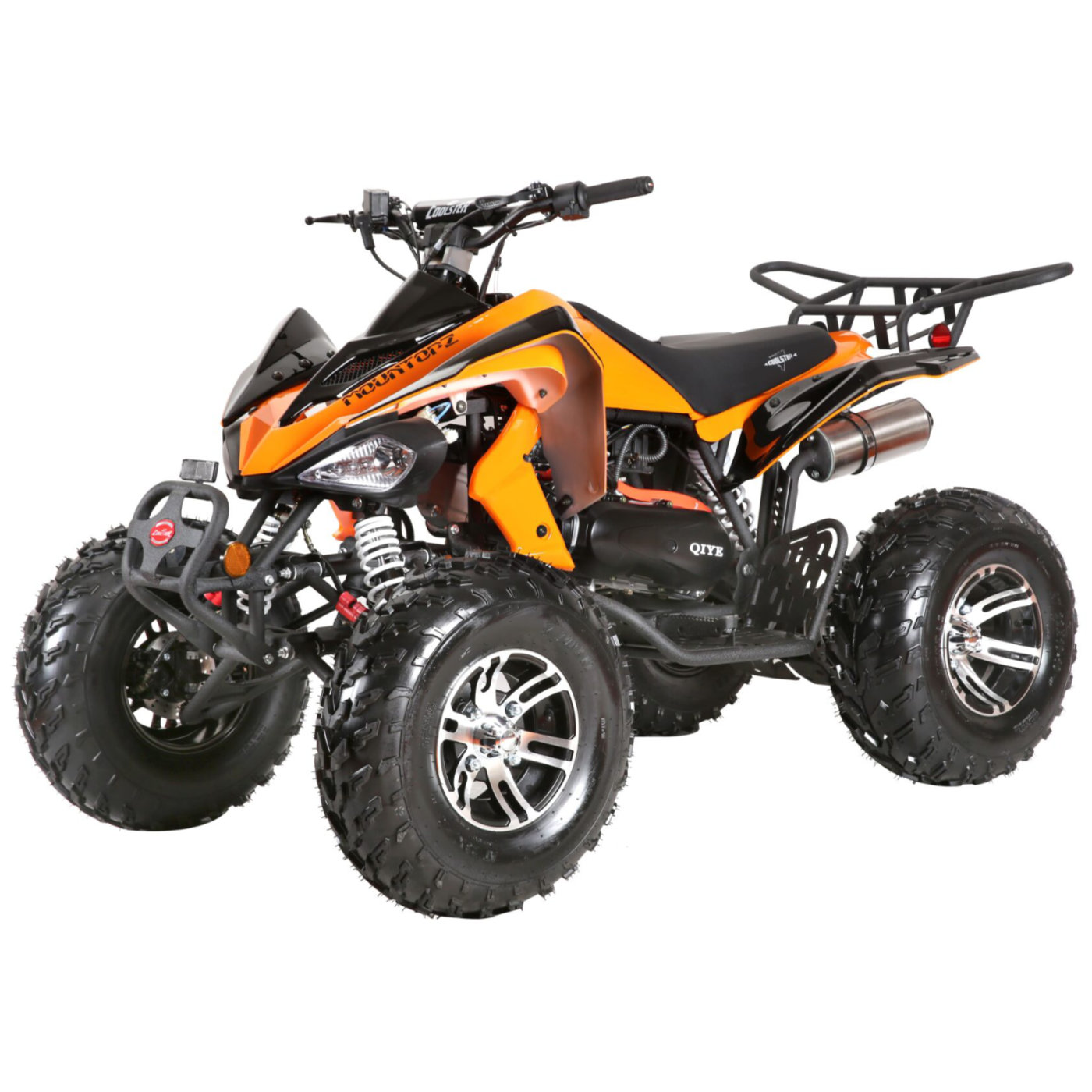

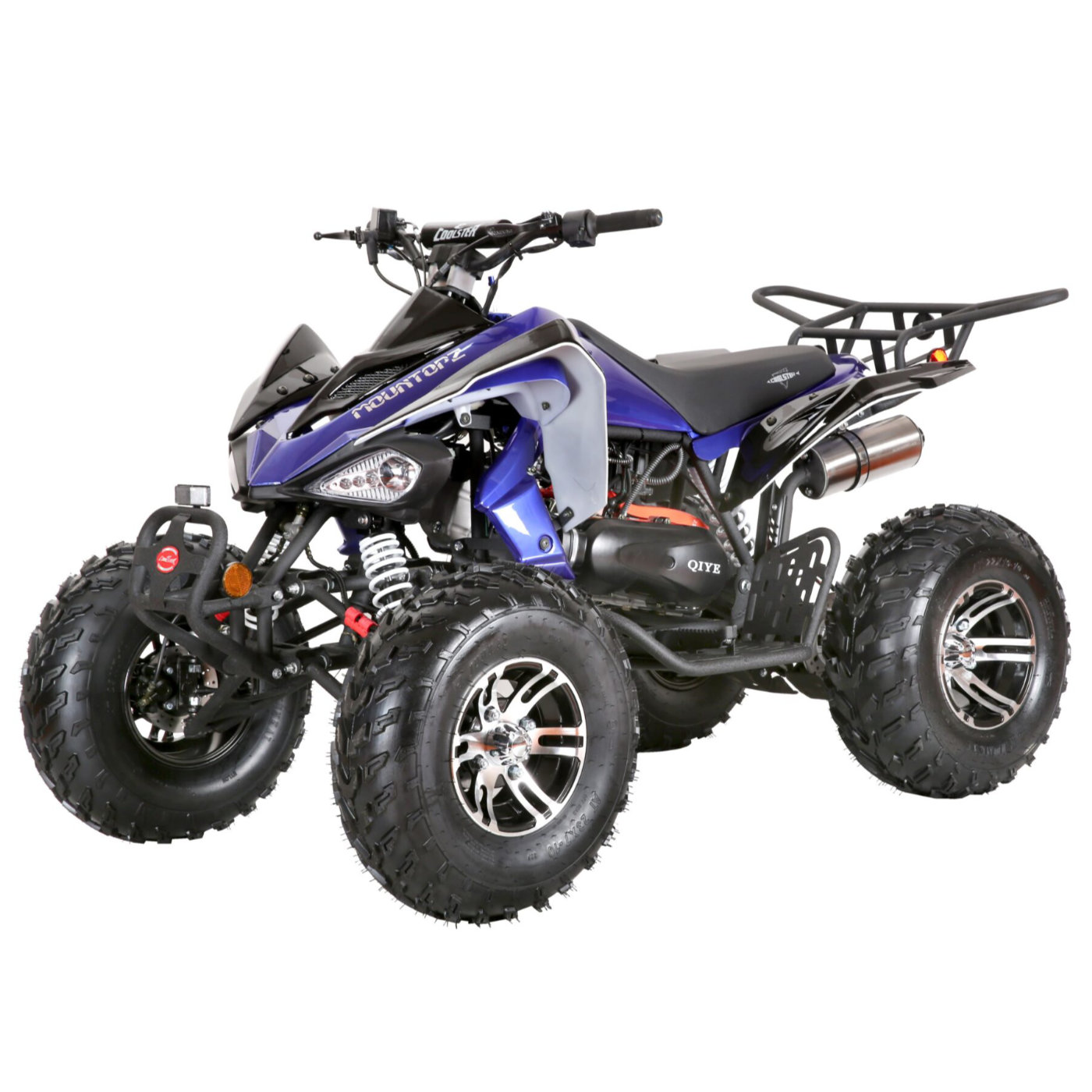

The Coolster 3175S2 is our first ever 170cc sport ATV. The Coolster 3175S2 features all the bells and whistles of the 3175S2, except with a more powerful engine. Equipped with chrome rims, 22×10-10 rear wheels, better shock absorption, and a rear utility rack, the Coolster 3175S2 is sure to please riders of all experiences.
Specifications:
Model Number: ATV-3175S2
Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
Displacement: 170cc
Max Torque: 10.2 N·m/5,500 r/min (N.m/r/min)
Max Power: 7.6 kW/7,000 r/min (kW/r/min)
Horsepower: 10.68 HP
Ignition: CDI
Starting System: Electric
Battery: 12V, 4Ah
Clutch: CVT Automatic
Transmission: Chain, Rear Wheel Drive
Brakes Front/Rear: Hub/Hydraulic Disc
Tires Front/Rear: 23 x 7-10 /22 x 10-10
Fuel Type: 92 or Higher Octane, Unleaded Gasoline
Fuel Capacity: 1.48 gallons / 5.6L
Weight(G.W./N.W): 400 lbs / 353 lbs (181 kg / 160 kg)
Maximum Weight Capacity: 220 lbs / 100 kg
Wheelbase (Front/Rear): 46" / 32" (930mm / 795mm)
Dimensions: 74" x 44" x 46" (1865 x 1100x 1160mm)
Height to Seat: 32" (810mm)
Min. Ground Clearance: 5.5" (140mm)
Passenger Capacity: Operator Only
Minimum Age Recommendation: 12 yrs old
This 170cc ATV's features, performance, and reliability compare well with many brand-name competitors.
All Coolster ATVs are made under a very strict, ISO 9000-compliant, quality control system.
